Product Description:
This double direction depaneling machine has the capacity to
perform horizontal and vertical depaneling on shape panels at one
time, saving labor and increasing automation.
To further maximize efficiency, the machine is equipped with a
touch screen, allowing for quick product changing. It has the
capability to store up to 100 programs in PLC.
It is also able to perform single direction depaneling, and the set
up parameters can be adjusted and wisely managed by the touch
screen for higher intelligence. Moreover, the dust cleaner is
optional.
Features:
- Product Name: Inline PCBA Automatic Depaneling Machine, inline V Cut PCB
Separator
- Packaging Weight: 300kgs
- Air Pressure: 0.5-0.8Mpa
- Blade Material: High Speed Steel
- Cutting Speed: 300-500/s
- Dimension: 1250(1560)mm×800mm×1295mm
Technical Parameters:
| Name | V-Cut PCB Separator |
|---|
| Dimension | 1250(1560)mm×800mm×1295mm |
| Features | Blade Set Can Be Quickly Changed |
| Blades Number | Depend On PCB |
| Cutting Speed | 300-500/s |
| Power Supply | 220/110V,50HZ |
| Blade Material | High Speed Steel |
| Driven Mode | Stepping / Servo Motor(optional) |
| Blade dimension | Linear Blade Or Circluar Blades |
| V-cut Angel | >40° |
Applications:
ChuangWei CWVC-5 V-Cut PCB Separator is a multi-blade PCB
depaneling machine designed for inline PCBA de-paneling. It is
certified with CE and has a minimum order quantity of 1Set. This
machine is capable of cutting boards with a width of 300mm and its
dimension is 1250(1560)mm×800mm×1295mm. It has a packaging weight
of 300kgs and the power supply requirement is 220/110V,50HZ. The
cutting speed of this machine is 300-500/s. Moreover, the price of
this machine is negotiable and it is packed in wooden cases. It can
be delivered within 8-15 days after payment and the supply ability
is 30 sets/month. This machine is suitable for cutting and
separating PCBs into multiple pieces with precise V-cuts. It is
designed to offer high accuracy and quality performance.
Customization:

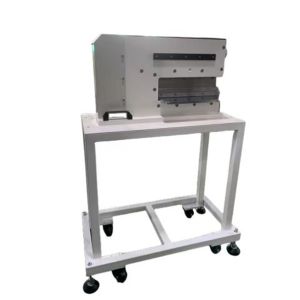

V-Cut PCB Separator
Brand Name: ChuangWei
Model Number: CWVC-5
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 8-15 days after payment
Supply Ability: 30sets/month
Blade Material: High Speed Steel
Driven Mode: Stepping / Servo Motor(optional)
Blades Number: Depend On PCB
Cutting Speed: 300-500/s
Machine Color: White
V-Cut PCB Separator is a Multi-blade PCB Depaneling Machine, Inline PCBA Automatic
Depaneling Machine, Inline PCBA V-cut Depaneling Machine. It is
powered by High Speed Steel blade and driven by either Stepping or
Servo Motor. The number of blades depends on PCB. It cuts at speed
of 300-500/s with a White color body. It is certified with CE and
offered with minimum order quantity of 1Set. The price is
Negotiable and it is packaged in wooden case with a delivery time
of 8-15 days after payment. The supply ability is 30sets/month.
Support and Services:
V-Cut PCB Separator Technical Support and Service
We provide technical support and service for our V-Cut PCB
Separator. Our service includes:
- Comprehensive pre-sale and post-sale technical support
- Troubleshooting for installation, operation and maintenance issues
- Repair and maintenance services
- Product upgrades and improvements
- Training services
If you have any technical questions or need assistance with the
V-Cut PCB Separator, please do not hesitate to contact our
technical support team.
Packing and Shipping:
Packaging and Shipping for V-Cut PCB Separator
The V-Cut PCB Separator is securely packaged and shipped in a
cardboard box.
The box is designed to protect the product from any potential
damages during transit.
The box is labeled with the product name and other relevant
information.
The box is placed inside a larger cardboard box for extra
protection.
All orders are shipped using a reliable courier service. Tracking
information is provided to customers after shipment.
If you have any special requirements for the shipping, please
contact us.
FAQ:
Q: What is the brand name of this product?A: The brand name of this product is ChuangWei.
Q: What is the model number of this product?A: The model number of this product is CWVC-5.
Q: Where is this product from?A: This product is from China.
Q: Does this product have any certifications?A: Yes, this product has CE certification.
Q: What is the minimum order quantity?A: The minimum order quantity is 1Set.
